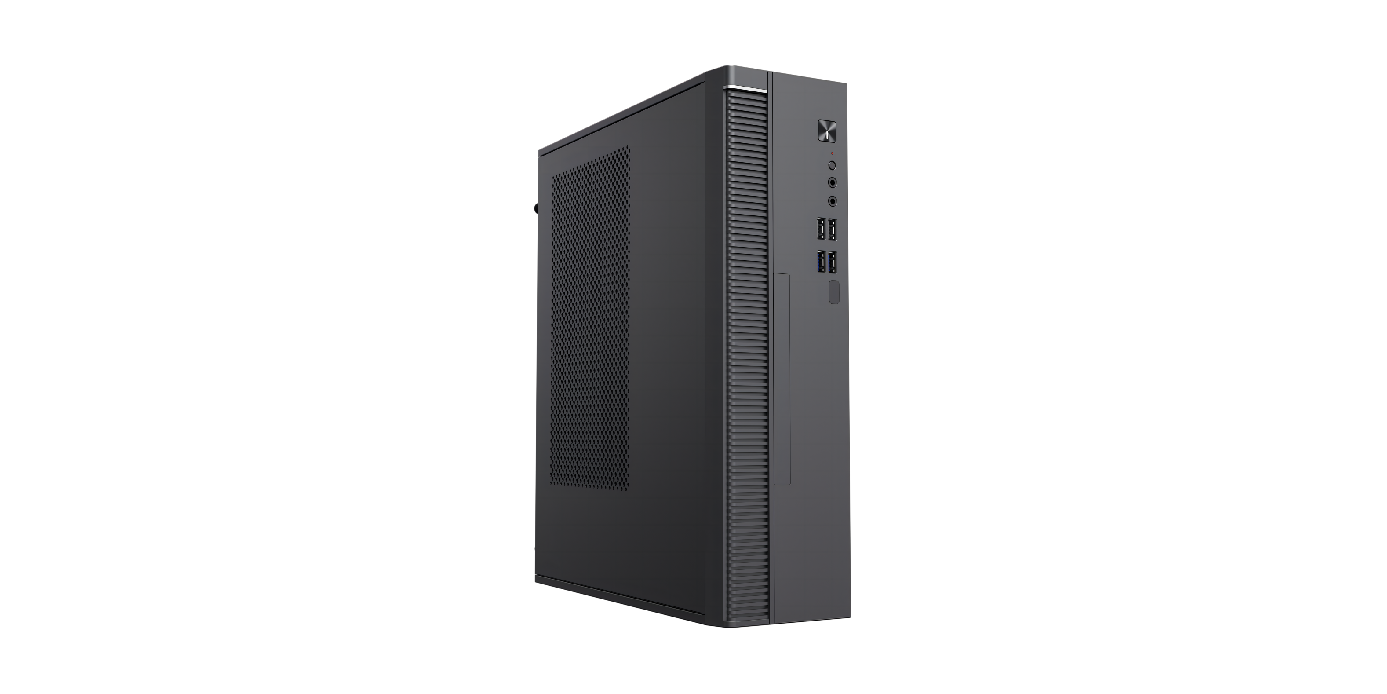

NS15A

中性標準品臺式機

采用Intel? Raptor Lake B760 & Alder Lake H610芯片組，具備豐富的外部接口，散熱效果，主打性價比家用辦公市場。

留言咨詢業務咨詢

規格參數

CPU	CPU	Intel? Alder Lake-S Core? Processors
CPU	TDP	65 W
Display	Graphic card	Intel? UHD Graphics
	Multi displays	Support 2 displays
	Interface	1 x HDMI1.4 1 x VGA
Network	Lan IC	RTL8111H
	Lan Interface	10/100/1000Mbps
	Lan Connector	1 x RJ45 Ports
	Wireless Type	M.2 Key E 2230 Module
	Wireless Interface	WiFi6E/BT5.1 Module
I/O interface	Serial Port	N/A
	USB	Front: 2 x USB2.0, 2 x USB3.2 Gen1 Rear: 2 x USB2.0, 2 x USB3.2 Gen1
	Button	1 x PowerButton
	AUDIO	Front: 1 x Mic in, 1 x Line out Rear: 1 x Line out, 1 x Line in, 1 x Mic in
	Expansion	1 x PCI Express4.0 x16 slot 1 x PCI Express3.0 x1 slot
	POWER	1 x 220V ATX Connector
System	Memory	Dual DIMM DDR4 Max. 64 GB
	Storage	1 x M.2 Key M 2280/2242 Size For NVMe GEN3 X4 SSD 4 x SATA Gen3 Port
	OS	Windows11
	BIOS	AMI
	WatchDog	Support
	Auto Power On	Yes
	Power Input	220V AC IN, 200W/350W
	Dimension	290mm(L) x 145mm(W) x 343mm(H)
	Operating Temp.	-5~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
